FA-2400 Series: GaN-on-SiC Power Amplifiers for Ku and Ka Band

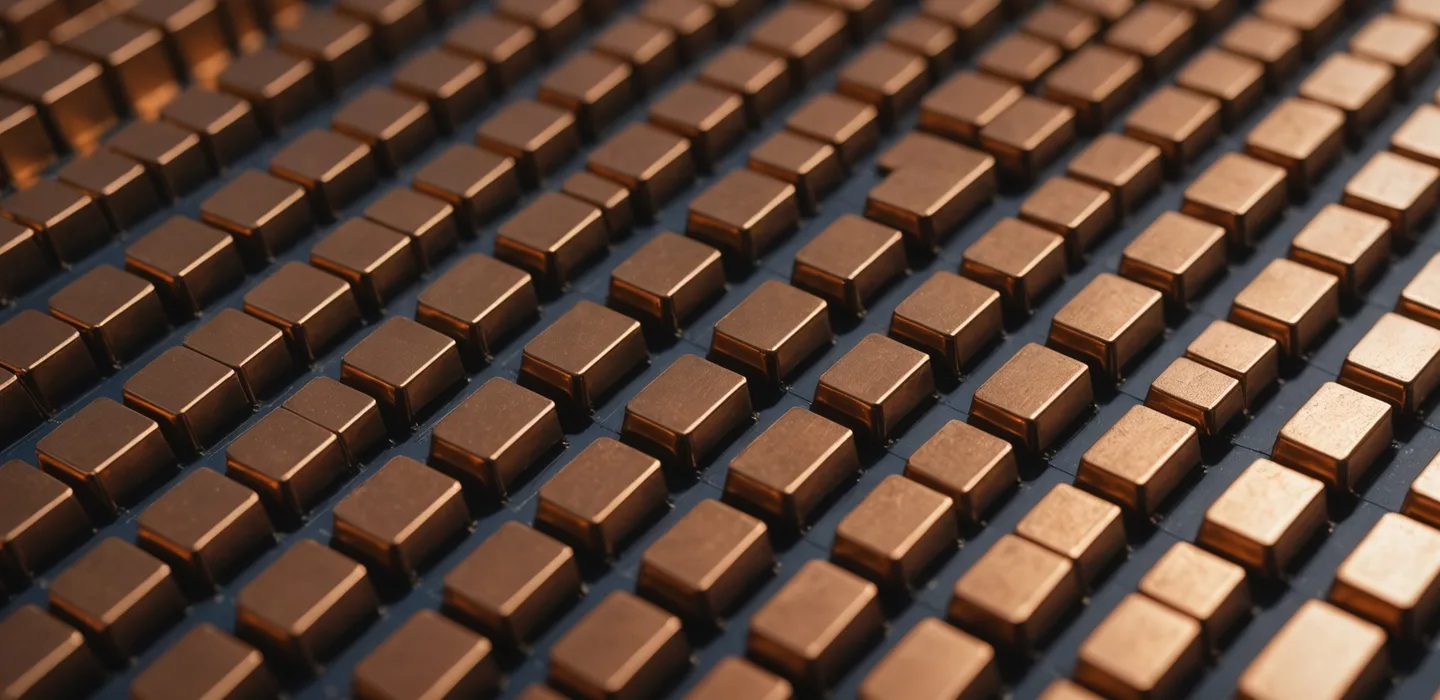

Three variants covering 12 to 40 GHz. Same process foundation, distinct frequency optimization. Built for phased-array satellite terminals, 5G active antennas, and airborne SATCOM front-ends.
FA-2400 Series Full Specification
Design target specifications for production devices. Contact for measurement data and application-specific characterization. All CW conditions at 25 degC case temperature unless noted.
| Parameter | FA-2401 (Ku) | FA-2402 (Ka Low) | FA-2403 (Ka High) | Unit |
|---|---|---|---|---|
| Frequency Range | 12-18 | 17.7-21.2 | 27-40 | GHz |
| Psat (CW) | 25 | 10 | 5 | W |
| P1dB | +44.2 | +40.5 | +37.0 | dBm |
| Drain Efficiency at P1dB | >62 | >58 | >52 | % |
| OIP3 | +46 | +42 | +38 | dBm |
| Small-Signal Gain | 22 | 20 | 18 | dB |
| Noise Figure | 4.2 | 4.8 | 5.5 | dB |
| Supply Voltage (Vdd) | 28 | 28 | 28 | V |
| Rth Junction-to-Case | 8.5 | 10.2 | 14.0 | degC/W |
| Operating Temp Range | -40 to +150 | -40 to +150 | -40 to +150 | degC (Tj) |
| Package | 7x7 QFN | 5x5 QFN | Bare die / SMT |
Three Variants for Distinct Frequency Segments
Gate length, bias point, and package are optimized per variant. The SiC substrate and thermal via architecture are common across all three.
Evaluation Kit and Sample Request
Evaluation samples are available for qualified system integrators. Each kit ships with the PA module, a characterized reference PCB, and bias sequencing documentation for safe power-up. S-parameter and load-pull data files are available through the customer portal after sample qualification.
- FA-2401, FA-2402, or FA-2403 module (one per kit)
- Characterized evaluation PCB with SMA launch connectors
- Bias sequencing guide and recommended gate/drain voltage ramp procedure
- S2P files (50-ohm), device characterization report, application note
- SPICE model (access via customer portal after qualification)
Full parametric data, S-parameter files, and evaluation kit requests. Samples available for qualified system integrators.
